Specific Relationship Types

Specific Relationship Types


In this section we’re going to look at the differences between using general and specific relationship types.

slides

Specific Relationship Types


If we load in all the data for one year we’ll have to scan through ~365 HAS_DAY relationships for each airport and check the date property for the :AirportDay node at the end of each relationship. If we load in 10 years that goes up to 3,650 relationships.

So it’s not an optimal model just yet but what can we do about it?

Making our relationships more specific


Neo4j is optimized for searching by unique relationship types and in this case the date of a flight provides that uniqueness.

We can refactor our model to change the HAS_DAY relationship to be the date of the flight instead e.g. 2008-1-3

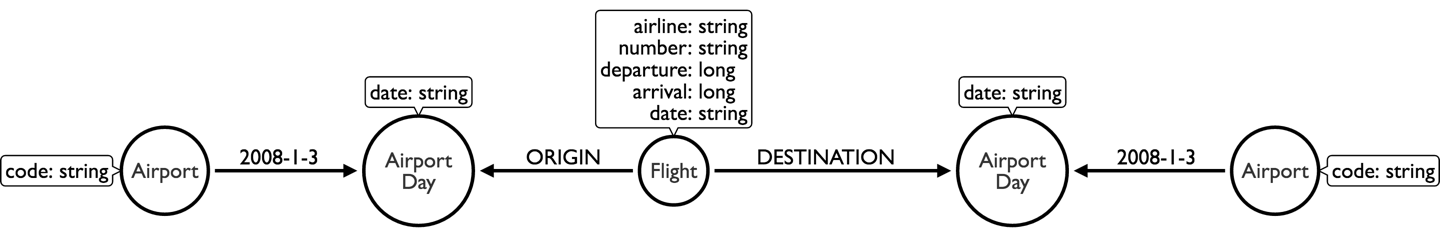

This is what our new model will look like:

specific rels

Refactoring to specific relationship type


Creating relationships with dynamic names isn’t possible using pure Cypher.

Luckily for us, Neo4j 3.0 saw the release of procedures and Neo4j’s Michael Hunger maintains the apoc procedures library which contains some procedures that we can use.

Procedures


Procedures allow us to write custom code in any JVM language, wrap it up in a function, and call it from Cypher.

The Neo4j community has built a collection of over 200 procedures in the Awesome Procedures (apoc) package over the last 6 months. Hopefully we’ll find one which can help us out with our batch refactoring efforts.

But first let’s get apoc setup on your machines:

Awesome Procedures

Exploring apoc


Spend a bit of time looking through the collection of procedures that apoc provides.

Can you work out which procedure we need to change a relationship type?

Hint The user guide will probably come in handy.

Explore the apoc docs and see if you work out which procedure we need to use. Bonus points if you can write the query which does the refactoring as well.

Exploring apoc


There are actually two functions which are interesting to us:

UNWIND ["apoc.create.relationship", "apoc.refactor.setType"] AS procedureName
CALL apoc.help(procedureName)  YIELD name, text
RETURN name, text

If we wanted to delete the HAS_DAY relationship and replace it with a date based relationship we could use apoc.refactor.setType but for the time being we’ll add the new data based relationship and keep the existing HAS_DAY relationship so we can compare the execution plans of both queries. We can always delete HAS_DAY afterwards if necessary.

Exercise: Refactoring to specific relationship type


Can you write a query which finds all the HAS_DAY relationships and creates a new relationship type named after the date property on the AirportDay nodes?

You can use the following as a template:

MATCH (origin:Airport)-[hasDay:HAS_DAY]->(ad:AirportDay)
// code that creates a new relationship type based on ad.date

Click through for the answers


If you really want to see them…​

Answer: Refactoring to specific relationship type


The following query will create new relationships from :Airport to :AirportDay

MATCH (origin:Airport)-[hasDay:HAS_DAY]->(ad:AirportDay)
CALL apoc.create.relationship(startNode(hasDay), ad.date, {}, endNode(hasDay) ) YIELD rel
RETURN COUNT(*)

Now it’s time to check whether this refactoring has sped up our query.

Finding flights between Los Angeles and Chicago Midtown International:


Our query to find flights from Los Angeles to Chicago Midtown International now reads like this:

MATCH (origin:Airport {code: "LAS"})-[:`2008-1-3`]->(:AirportDay)<-[:ORIGIN]-(flight:Flight),
      (flight)-[:DESTINATION]->(:AirportDay)<-[:`2008-1-3`]-(destination:Airport {code: "MDW"})
RETURN *

Try profiling this query against the query using the HAS_DAY relationship from before:

PROFILE
MATCH (origin:Airport {code: "LAS"})-[:HAS_DAY]->(:AirportDay {date: "2008-1-3"})<-[:ORIGIN]-(flight:Flight),
      (flight)-[:DESTINATION]->(:AirportDay {date: "2008-1-3"})<-[:HAS_DAY]-(destination:Airport {code: "MDW"})
RETURN *

What do you notice?

Next


In the next section we’ll have a look at how refactoring works when dealing with more data.

Refactoring Large Graphs
