Exercise 16

Exercise 16: Importing data (Preparations)

If you are using Neo4j Desktop:

You will start with a new database named importcsv. Execute these commands in Neo4j Browser to create the database.

:USE system
CREATE DATABASE importcsv
:USE importcsv

If you are using Neo4j Sandbox or Neo4j Aura, you will need to:

Drop all indexes and constraints in the graph.
Execute MATCH (n) DETACH DELETE n

Exercise 16: Importing data (Overview)

In this exercise you write Cypher statements to import data into your graph.

Exercise 16.1: Write the Cypher statement to read the actor data from a file.
Exercise 16.2: Read the data and return it, ensuring that the data returned is properly formatted.
Exercise 16.3: Load the data into your graph.
Exercise 16.4: Write the Cypher statement to read the movie data from a file.
Exercise 16.5: Read the data and return it, ensuring that the data returned is properly formatted.
Exercise 16.6: Load the data into your graph.
Exercise 16.7: Write the Cypher statement to read the relationship data from a file.
Exercise 16.8: Read the data and return it, ensuring that the data returned is properly formatted.
Exercise 16.9: Load the data into your graph.

Go to the next page to start this exercise.

Exercise 16.1: Write the Cypher statement to read the actor data from a file (Instructions)

You are given the name of a file, http://data.neo4j.com/v4.0-intro-neo4j/actors.csv that you must load into your graph.

Write the Cypher statement to read the actor data from this file.

Exercise 16.1: Write the Cypher statement to read the actor data from a file (Solution)

You are given the name of a file, http://data.neo4j.com/v4.0-intro-neo4j/actors.csv that you must load into your graph.

Write the Cypher statement to read the actor data from this file.

LOAD CSV WITH HEADERS
FROM 'http://data.neo4j.com/v4.0-intro-neo4j/actors.csv'
AS line
RETURN line.id, line.name, line.birthYear

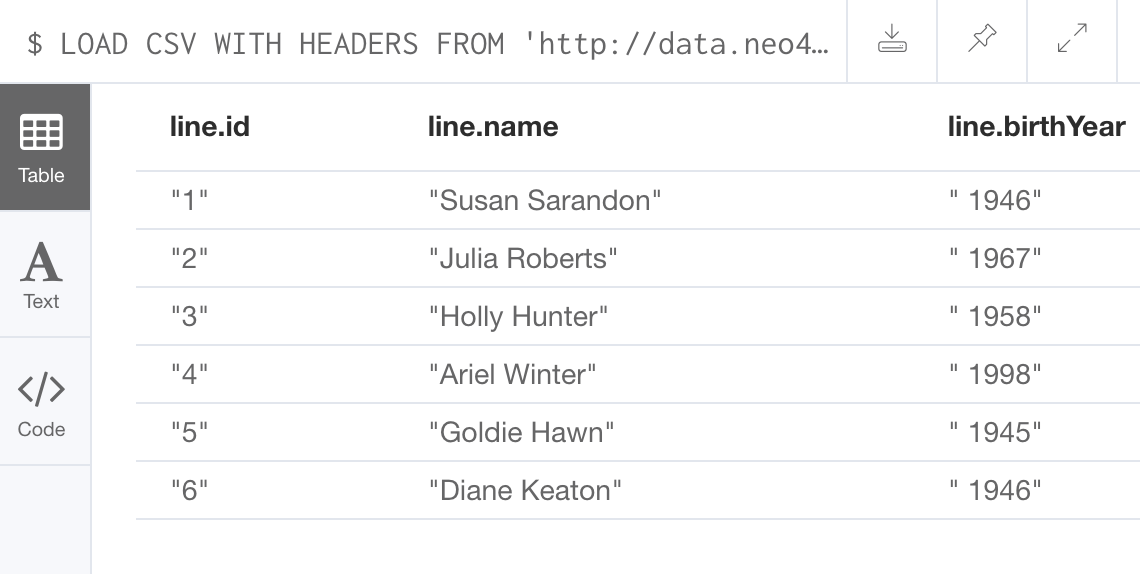

The result should be:

Note: If you have previously downloaded the files for this course and are using Neo4j Desktop, you can place them into the import folder:

In Neo4j Desktop Click Manage > Open Folder for the Neo4j instance you are using.
Copy the CSV files you previously downloaded to the import folder.
Adapt the code above to read from the filesystem:

LOAD CSV WITH HEADERS
FROM 'file:///actors.csv'
AS line
RETURN line.id, line.name, line.birthYear

Note: If you are using Neo4j Sandbox or Neo4j Aura, you must use the URL for the file at data.neo4j.com.

Exercise 16.2: Read the data and return it, ensuring that the data returned is properly formatted (Instructions)

Read the data and return it, ensuring that the data returned is properly formatted.

Hint: You want to use birthYear as a number, not a string.

Exercise 16.2: Read the data and return it, ensuring that the data returned is properly formatted (Solution)

Read the data and return it, ensuring that the data returned is properly formatted.

Hint: You want to use birthYear as a number, not a string.

LOAD CSV WITH HEADERS
FROM 'http://data.neo4j.com/v4.0-intro-neo4j/actors.csv'
AS line
RETURN line.id, line.name, toInteger(trim(line.birthYear))

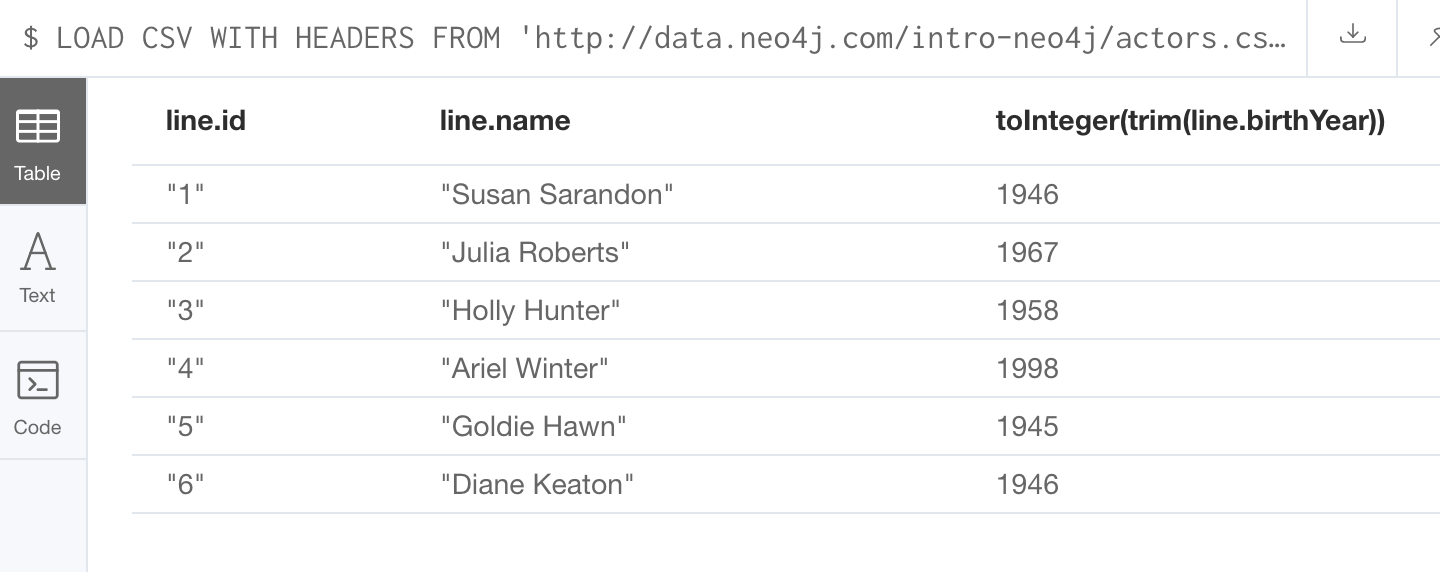

The result should be:

Exercise 16.3: Load the data into your graph (Instructions)

Load the data into your graph where you will create Person nodes with the properties: name, born, and actorId.

Exercise 16.3: Load the data into your graph (Solution)

Load the data into your graph where you will create Person nodes with the properties: name, born, and actorId.

LOAD CSV WITH HEADERS
FROM 'http://data.neo4j.com/v4.0-intro-neo4j/actors.csv'
AS line
MERGE (actor:Person {name: line.name})
  ON CREATE SET actor.born = toInteger(trim(line.birthYear)), actor.actorId = line.id
  ON MATCH SET actor.actorId = line.id

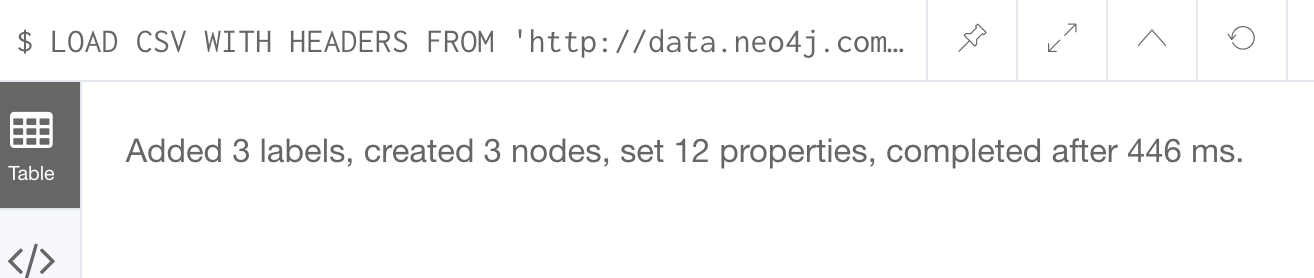

The result returned should be:

Exercise 16.4: Write the Cypher statement to read the movie data from a file (Instructions)

You are given the name of a file, http://data.neo4j.com/v4.0-intro-neo4j/movies.csv that you must load into your graph.

Write the Cypher statement to read the movie data from this file.

Exercise 16.4: Write the Cypher statement to read the movie data from a file (Solution)

You are given the name of a file, http://data.neo4j.com/v4.0-intro-neo4j/movies.csv that you must load into your graph.

Write the Cypher statement to read the movie data from this file.

LOAD CSV WITH HEADERS
FROM 'http://data.neo4j.com/v4.0-intro-neo4j/movies.csv'
AS line
RETURN line.id, line.title, line.year, line.tagLine

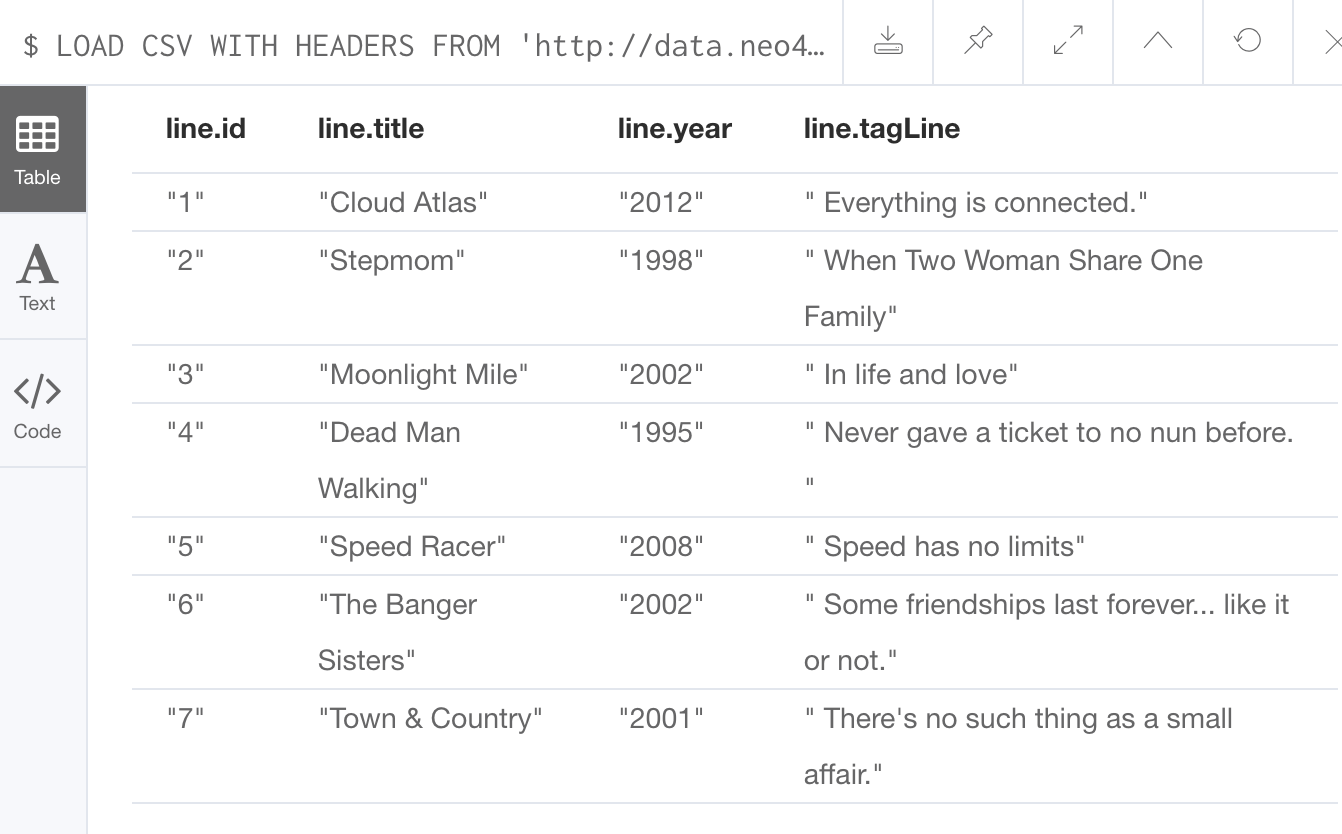

The result returned should be:

Exercise 16.5: Read the data and return it, ensuring that the data returned is properly formatted (Instructions)

Read the data and return it, ensuring that the data returned is properly formatted.

Hint: The year should be interpreted as a number and the tagline data should have no leading or trailing spaces.

Exercise 16.5: Read the data and return it, ensuring that the data returned is properly formatted (Solution)

Read the data and return it, ensuring that the data returned is properly formatted.

Hint: The year should be interpreted as a number and the tagline data should have no leading or trailing spaces.

LOAD CSV WITH HEADERS
FROM 'http://data.neo4j.com/v4.0-intro-neo4j/movies.csv'
AS line
RETURN line.id, line.title, toInteger(line.year), trim(line.tagLine)

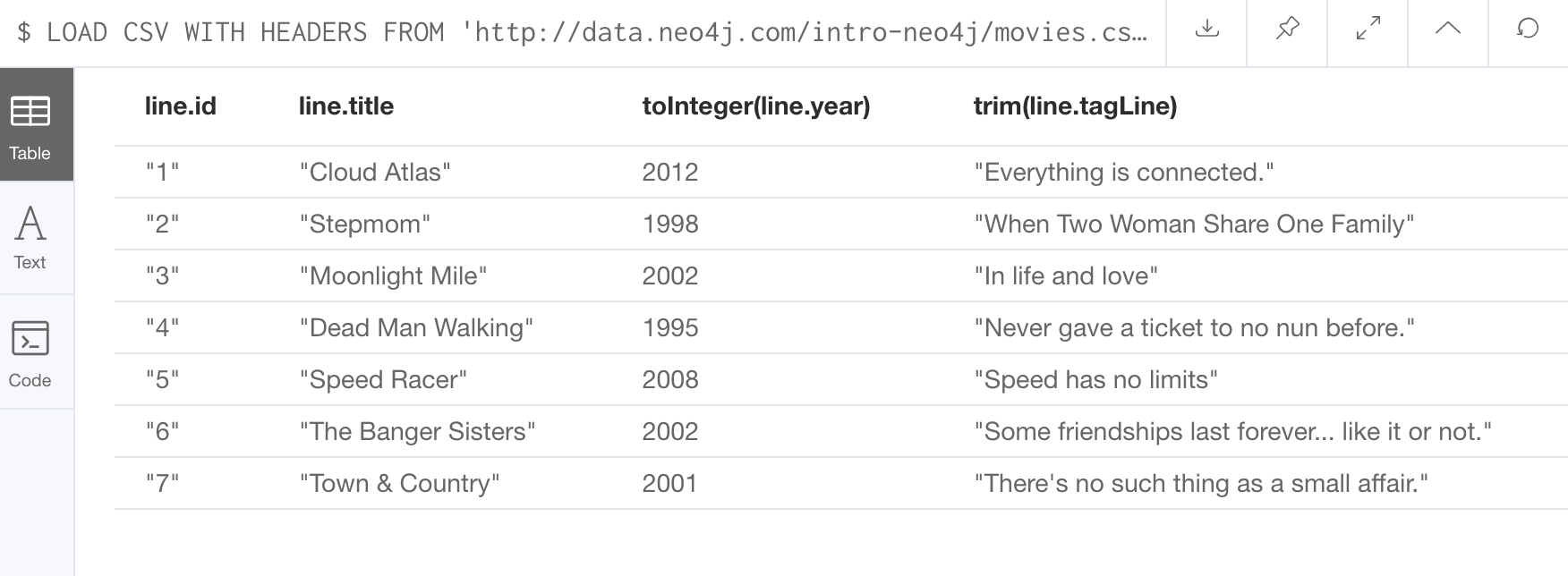

The result returned should be:

Exercise 16.6: Load the data into your graph (Instructions)

Load the data into your graph where you will create Movie nodes with the properties: title, released, tagline, and movieId.

Exercise 16.6: Load the data into your graph (Solution)

Load the data into your graph where you will create Movie nodes with the properties: title, released, tagline, and movieId.

LOAD CSV WITH HEADERS
FROM 'http://data.neo4j.com/v4.0-intro-neo4j/movies.csv'
AS line
MERGE (m:Movie {title: line.title})
ON CREATE
  SET m.released = toInteger(trim(line.year)),
      m.movieId = line.id,
      m.tagline = line.tagLine

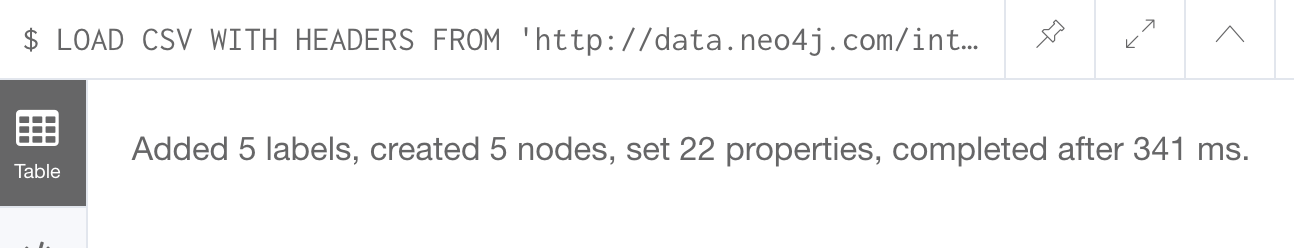

The result returned should be:

Exercise 16.7: Write the Cypher statement to read the relationship data from a file (Instructions)

You are given the name of a file, http://data.neo4j.com/v4.0-intro-neo4j/actor-roles.csv that you must load into your graph.

Write the Cypher statement to read the relationship data from this file.

Exercise 16.7: Write the Cypher statement to read the relationship data from a file (Solution)

You are given the name of a file, http://data.neo4j.com/v4.0-intro-neo4j/actor-roles.csv that you must load into your graph.

Write the Cypher statement to read the relationship data from this file.

LOAD CSV WITH HEADERS
FROM 'http://data.neo4j.com/v4.0-intro-neo4j/actor-roles.csv'
AS line FIELDTERMINATOR ';'
RETURN line.personId, line.movieId, line.Role

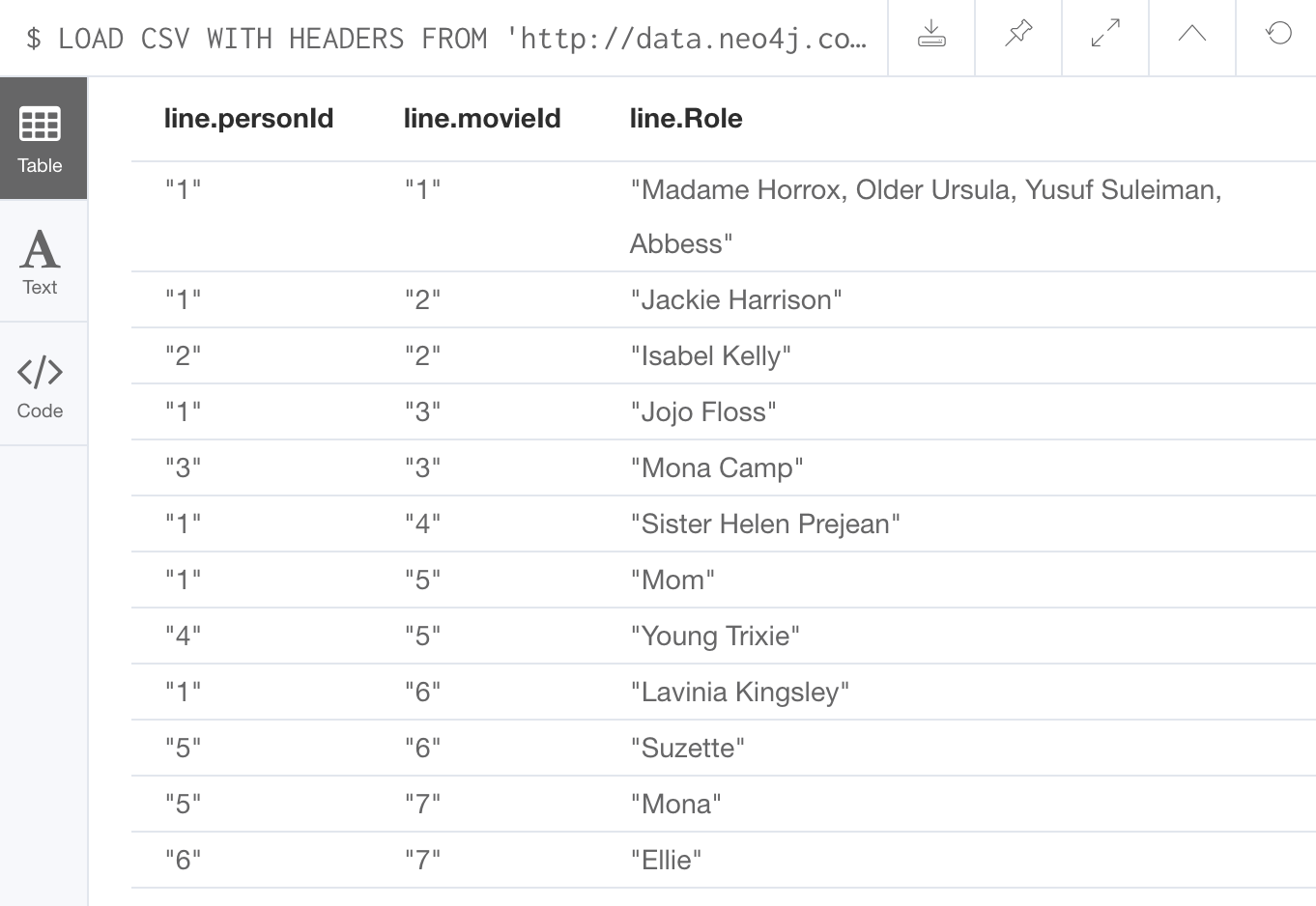

The result returned should be:

Exercise 16.8: Read the data and return it, ensuring that the data returned is properly formatted (Instructions)

Read the data and return it, ensuring that the data returned is properly formatted.

Hint: Use split() to create the list of roles for a line.

Exercise 16.8: Read the data and return it, ensuring that the data returned is properly formatted (Solution)

Read the data and return it, ensuring that the data returned is properly formatted.

Hint: Use split() to create the list of roles for a line.

LOAD CSV WITH HEADERS
FROM 'http://data.neo4j.com/v4.0-intro-neo4j/actor-roles.csv'
AS line FIELDTERMINATOR ';'
RETURN line.personId, line.movieId, split(line.Role,',')

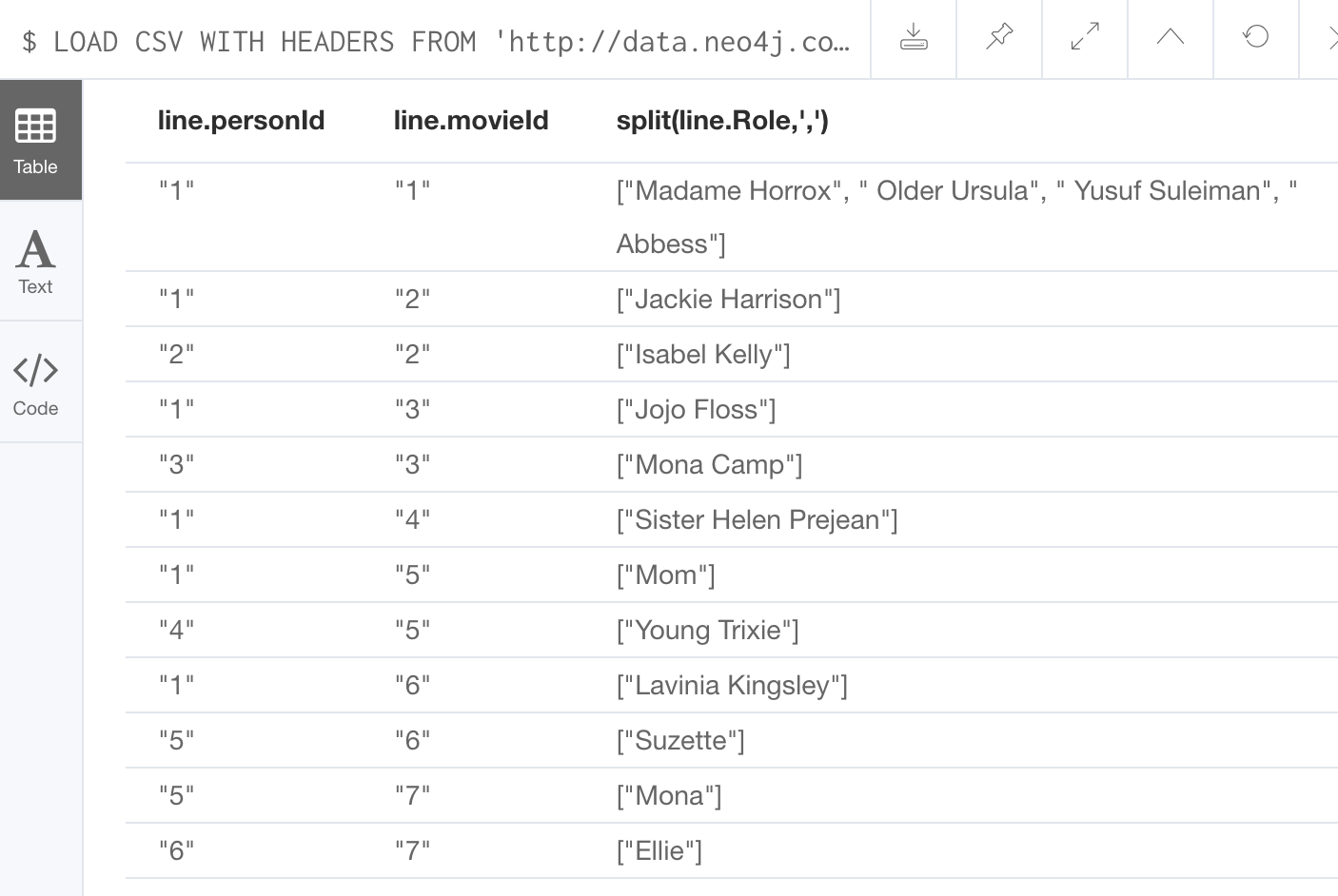

The result returned should be:

Exercise 16.9: Load the data into your graph (Instructions)

Load the relationship data into your graph.

Hint: You will need to use the properties actorId and movieId to find the nodes in the graph.

Exercise 16.9: Load the data into your graph (Solution)

Load the relationship data into your graph.

Hint: You will need to use the properties actorId and movieId to find the nodes in the graph.

LOAD CSV WITH HEADERS
FROM 'http://data.neo4j.com/v4.0-intro-neo4j/actor-roles.csv'
AS line FIELDTERMINATOR ';'
MATCH (movie:Movie { movieId: line.movieId })
MATCH (person:Person { actorId: line.personId })
MERGE (person)-[:ACTED_IN { roles: split(line.Role,',')}]->(movie)

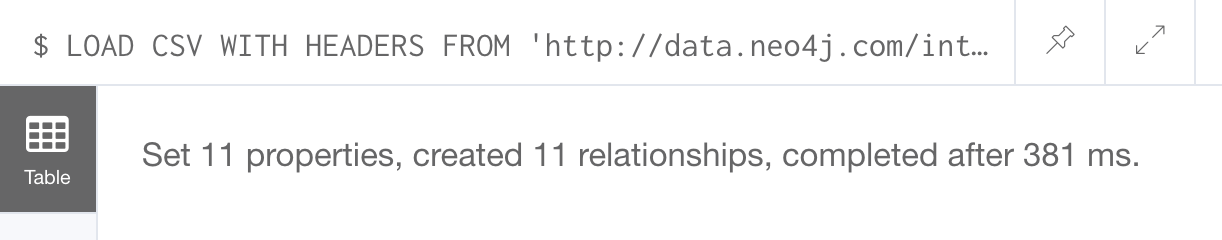

The result returned should be:

Exercise 16: Importing data (Summary)

In this exercise you wrote Cypher statements to load data that is properly formatted into the graph.

Continue to Exercise 17
